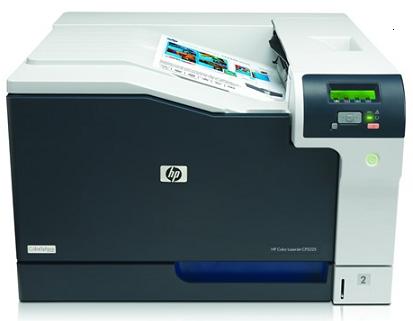

Принтер HP Color LaserJet Professional CP5225DN (CE712A)
|
|
|||||||||||||
Лазерный принтер, печать цветная, максимальный формат A3, скорость ч/б печати 20 стр/мин.
Технические характреистики
| Максимальный формат | A3 |
| Максимальное разрешение для ч/б печати | 600х600 dpi |
| Максимальное разрешение для цветной печати | 600х600 dpi |
| Скорость печати ч/б | 20 стр/мин |
| Скорость печати цветная | 20 стр/мин |
Детали для CE712A
| Intermediate transfer belt (ITB) coupling release arm | RC2-6824-000CN |
| Separation assembly for tray 1 on HP Color Laserjet CP5525 | RM1-6163-000CN |
| Separation pad assembly - For tray 1 | CE707-67908 |
| Paper pick-up assembly | RM1-6944-000CN |
| Tray 2 REPLACEMENT Gray | CE710-67907 |
| Paper input tray | CF235-67917 |
| 250-sheet paper cassette tray 2 assembly | RC2-6861-000CN |
| 250-sheet paper cassette tray 2 assembly | RC2-68621-000CN |
| 250-sheet paper cassette tray 2 assembly | RM1-6942-000CN |
| 250-sheet paper cassette tray 2 assembly | RM1-7138-000CN |
| 250-sheet paper cassette tray 2 assembly | RM1-7138-130CN |
| Cassette Assembly | RM1-7138-130CN |
| 500-sheet paper cassette tray assembly | RM1-9413-000CN |
| HP Color LaserJet CP5525 CP5225 M750 series CE860A 500 Sheet Optional Feeder | CE860 |
| 1X500 sheet paper feeder kit 500-sheet paper tray assembly | CE860-67902 |
| Multi-purpose/tray 1 assembly | RM1-6045-000CN |
| Exhaust shutter | RC2-7010-000CN |
| Paper Pick-Up Assy | RM1-6944-020CN |
| Box pillar plate | RC2-6673-000CN |
| Duplex reverse drive assembly | RM1-6167-000CN |
| Registration sensor assembly | RM1-6002-000CN |
| Assy-Registration Sensor | RM1-6002-010CN |
| Intermediate Transfer Belt Kit | CC522-69004 |
| Assy-Dc Controller Pcb | RM1-6639-070CN |
| Dc Controller Pcb Assy | RM1-6639-100CN |
| Exhaust shutter | RC2-7010-000CN |
| Grounding spring | RC2-6700-000CN |
| Grounding spring | RC2-7209-000CN |
| Spring, Compression | RU6-2721-000CN |
| Contact spring | RU6-2767-000CN |
| Tension spring | RU6-2831-000CN |
| Toner collection unit | CE710-69005 |
| Tray 2 paper pick-up roller assembly | CE710-69007 |
| Paper pick-up assembly | RM1-6105-000CN |
| Pickup Assembly for HP Color LaserJet Professional CP5225 | RM1-6105-060CN |
| Paper Pick Up Assy | RM1-6105-070CN |
| Paper pick-up assembly | RM1-6106-000CN |
| Pickup Assembly for HP Color LaserJet Professional CP5225 | RM1-6106-060CN |
| Paper Pick Up Assy | RM1-6106-080CN |
| Formatter (main logic) board | CE490-67901 |
| Formatter (main logic) board Rohs2.04 | CE490-67902 |
| Environment sensor PC board assembly | RK2-2884-000CN |
| DC Controller PC board | RM1-6639-000CN |
| Dc Controller Pcb Assy | RM1-6639-110CN |
| Driver PC board | RM1-6743-000CN |
| Low-voltage power supply PC board assembly | RM1-6755-000CN |
| Low-voltage power supply PC board assembly | RM1-6756-000CN |
| Power switch PC board assembly | RM1-6761-000CN |
| Toner remaining detection PC board assembly | RM1-6779-000CN |
| Dc Controller Pcb Assy | RM1-6796-100CN |
| Tray 1 paper pick-up roller assembly | CE710-67909 |
| Tray 1 paper pick-up roller assembly | CE710-69006 |
| Tray 1 paper pick-up roller assembly | CE710-69007 |
| Fixing Gear Assembly | RM1-7914-070CN |
| Pre-fuser guide assembly (Black) | RC2-6551-000CN |
| Paper feed guide assembly | RC2-7297-000CN |
| Duplexing spring hook - For duplex models only | RC2-6932-000CN |
| HP Enterprise 700 MFP series Laser/Scanner Assembly. | RM1-6122-000CN |
| Laser scanner assembly | RM1-6122-070CN |
| Assy-Laser Scanner | RM1-6122-080CN |
| Lifter drive assembly | RM1-3819-000CN |
| Multi-porpuse/tray 1 lifter plate assembly | RM1-6043-000CN |
| Mp Lifter Plate Assy | RM1-6043-030CN |
| Intermediate transfer belt (ITB) coupling release link | RC2-6823-000CN |
| Front right door link | RC2-7233-000CN |
| Rear handle lock - For the paper feeder | RC2-9303-000CN |
| Developing disengagement stepping DC motor (M6) | RK2-0997-000CN |
| Developing disengagement stepping DC motor (M6) | RK2-3298-000CN |
| Stepping motor | RK2-1331-000CN |
| Multi-purpose/tray 1 pick-up roller and separation pad | CC522-67928 |
| Arm, Waste Toner, Left | RC2-7035-000CN |
| Arm, Waste Toner, Right | RC2-7036-000CN |
| Intermediate transfer belt (ITB) maintenance assembly | CC522-67910 |
| Intermediate transfer belt (ITB) repair assembly | CC522-67911 |
| Intermediate transfer belt assembly | CE710-67903 |
| HP Color LaserJet Intermediate transfer belt (ITB) assembly | CE710-69003 |
| Intermediate transfer belt (ITB) repair assembly | RM2-5833-000CN |
| Universal Serial Bus (USB) interface cable (Black) | 8121-0868 |
| Cable, flexible flat, 3 | RK2-2969-000CN |
| Flat flexible cable assembly | RM1-6804-000CN |
| Low voltage power supply cable | RM1-6807-000CN |
| Low-voltage power supply test cable | RM1-6813-000CN |
| Primary transfer cable | RM1-6822-000CN |
| Switch cable - SW3 5V interlock switch 1 | RM1-6831-000CN |
| Left cable | RM1-6835-000CN |
| Feed joint cable | RM1-6847-000CN |
| Rear cable | RM1-6863-000CN |
| Low-voltage power supply SV joint cable | RM1-6868-000CN |
| T2 contact - For the second-transfer high-voltage PCA cap | RC2-6691-000CN |
| HP Network Installation mid-high Color LaserJet printer Service | H2872E |
| HP Installation mid-high Color LaserJet printer Service | H4515E |
| HP 1 year Post Warranty Phone Assist Color LaserJet 3-9xxx/ScanJet N7xxx-9xxx Service | HC130PE |
| HP 1 year Post-Warranty Next business day Onsite | UQ491PE |
| HP 1 year Post-Warranty 4 hour response 13x5 Onsite Color LaserJet CP5225 Hardware Support | UQ492PE |
| HP 1 year Post-Warranty 4 hour response 9x5 Onsite Color LaserJet CP5225 Hardware Support | UQ493PE |
| HP 5 year 4 hour response 13x5 Onsite Color LaserJet CP5225 Hardware Support | UQ494E |
| HP 4 year 4 hour response 13x5 Onsite Color LaserJet CP5225 Hardware Support | UQ495E |
| HP 3 yearNext business day Onsite | UQ496E |
| Snap tight black connector | VS1-7207-019CN |
| Lower left handle cover | RC2-6625-000CN |
| Front left hinge cover | RC2-6713-000CN |
| Front arm cover 2 | RC2-6733-000CN |
| Front center hinge cover | RC2-6738-000CN |
| Left cover - For the paper feeder | RC2-9331-000CN |
| Gear cover - Plastic cover that protects the 18/29-tooth gear | RC3-0688-000CN |
| Formatter metal case cover | RM1-6066-000CN |
| Right rear cover | RM1-7142-000CN |
| Paper delivery assembly. Paper delivery assembly CP5525n/CP5525dn/CP5525xh | RM1-6165-080CN |
| Paper delivery assembly. | RM1-8830-000CN |
| Toner collection unit access door | RC2-7034-000CN |
| Right door assy | RM1-6104-570CN |
| Delivery Fan (FM3) - Provides air to the paper delivery area | RK2-2728-000CN |
| Toner feed assembly | RM1-6040-000CN |
| Fuser Assembly - For 110 VAC operation | CE710-69001 |
| Fusing Assembly - For 220 VAC operation - Bonds toner to paper with heat | CE710-69002 |
| Fuser Assembly - For 110 VAC operation | RM1-6083-000CN |
| Fuser Assembly | RM1-6184-000CN |
| Fuser gear assembly | RM1-7914-000CN |
