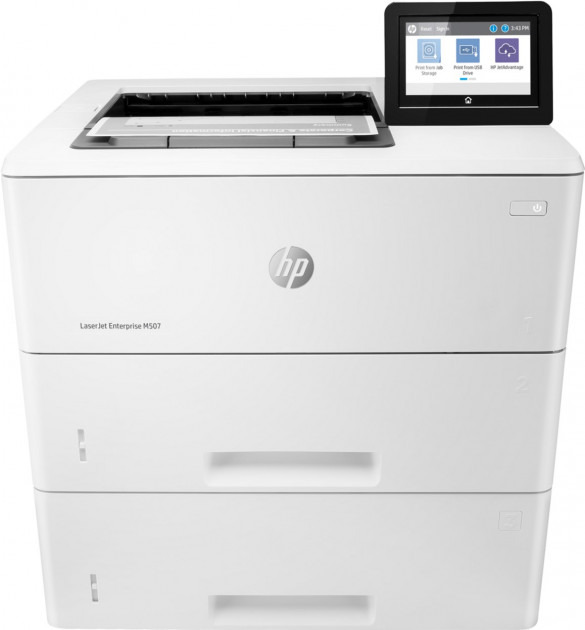

Принтер HP LaserJet Enterprise M507x (1PV88A)
|
|
|||||||||||||
Принтер HP LaserJet Enterprise M507x (A4, 1200dpi, 43ppm, 512Mb, 3trays 100+550+550, USB/GigEth/Built-in wireless direct printing, Duplex, color LCD
Технические характеристики
| Тип печати | черно-белая |
| Технология печати | лазерная |
| Скорость печати | 43 стр/мин |
| Разрешение печати | 1200х1200 dpi |
Детали для 1PV88A
| RK2-6261-000CN | Flat flexible cable |
| RM3-7424-000CN | High-voltage power supply (HVPS) assembly |
| F2A68-67913 | Kit-Trays 2 Roller Tray roller kit pad and 2 roller kit assembly. |
| F2A68-67914 | Multipurpose/tray 1 pick-up roller and separation pad |
| RL2-0656-000CN | Roller-Multi-Purpose |
| RM1-4023-000CN | Transfer roller assembly - Long metal shaft with black roller |
| RM2-2039-000CN | Transfer Roller Assembly |
| RM2-5745-000CN | Separation unit separation roller assembly. |
| RM2-2891-000CN | Laser/scanner assembly |
| 1PV64-69001 | MPS Maintenance Kit |
| 1PV86-67903 | Kit-Repair Part 220V |
| K0Q15-67903 | Kit-Control Panel 4.3 inch |
| RL2-0647-000CN | Assy-Duplex Roller |
| RM2-2610-000CN | Assy-Control Panel |
| RM2-2612-000CN | Assy-Control Panel |
| RM3-7632-000CN | Cable-Flexible Flat |
| RM1-5421-000CN | Solenoid assembly - For the M506 printer models only |
| RU8-2935-000CN | Spring, Compression |
| RC4-3002-000CN | Cartridge door assembly shaft support |
| RK2-0534-000CN | Microswitch - Door open switch - SW501 |
| RM2-5701-010CN | Lever Switch Assy |
| RC4-4141-000CN | Tray, Paper Delivery |
| RM2-5690-000CN | Paper cassette tray - Just the cassette tray 2 |
| F2A72-67901 | Optional feeder tray 550 Media capacity HP Enterprise M506 M527 M501 series models |
| RK2-7067-000CN | USB cable |
| RK2-8657-000CN | Cable-Flexible Flat |
| RK3-0526-000CN | Hardware integration pocket (HIP) cable |
| RM2-2596-000CN | Tag cable assembly |
| RM2-8514-000CN | Paper re-pick-up clutch assembly |
| RC4-3219-000CN | Full detect sensor cover |
| RC4-4137-000CN | Cover, Right |
| RC4-4149-000CN | USB cover - For the M506 printer series |
| RM2-2587-000CN | Top cover assembly |
| RM2-5683-000CN | Assy-Duplex Paper Delivery |
| B5L29-67903 | 500GB secure Hard Disk Drive (HDD) assembly |
| RK2-8068-000CN | Fan (FM1) assembly |
| RM2-5666-000CN | Intermediate paper feeder assembly |
| FM1-W154-000CN | Fuser assembly - For 110 VAC |
| RM2-2585-000CN | Fuser assembly - For 110 VAC |
| RM2-2586-000CN | Fuser assembly - For 220 VAC |
| RM2-5700-000CN | Mutli-purpose/tray 1 gear assembly |
| 3GY19-67901 | Fixed Tray Guide kit |
| RM2-5689-000CN | Film bias assembly |
| RC4-3010-000CN | Cartridge door left hinge |
| RC4-3133-000CN | Right transfer roller holder |
| RC4-3134-000CN | Holder Transfer Roller Left HP Pro M402DN M403 |
| RC4-4479-000CN | Pressure release link |
| RM2-8684-000CN | Main motor (M1) assembly |
| RM2-9531-000CN | Assy-Main Motor |
| RL2-0885-000CN | Formatter PC board case - For the M506 printer series only |
| RL2-0657-000CN | Multi-purpose/tray 1 separation pad |
| 1PV87-60001 | Formatter (main logic) PC board |
| 1PV87-60002 | Formatter (main logic) PC board |
| 1PV87-60003 | Formatter (main logic) PC board |
| RM2-7948-000CN | Fusing power supply (FPS) PC board assembly |
| RM2-7949-000CN | Fusing power supply (FPS) PC board assembly |
| RM2-7955-000CN | Memory PC board assembly |
| RM2-8597-000CN | Power switch PC board assembly |
| RM3-7475-000CN | DC controller PC board assembly - For use with duplex models only |
| RM3-7475-010CN | Assy-DC Controller PCB |
| RM2-5741-000CN | Roller unit paper pickup roller assembly. |
| RM2-7941-000CN | Low-voltage power supply (LVPS) - For 110-127 VAC |
| RM2-7942-000CN | Low-voltage power supply (LVPS) |
Совместимые картриджи
| CF289A | черный |
| CF289X | черный |
